Using External RADIUS Accounts

Using an external RADIUS authentication server to manage group administration accounts can be useful when you have many accounts (more than 100). You can also use RADIUS accounting servers to track the activity of these accounts.

RADIUS servers must be available on the network and accessible to the group for the servers to authenticate the account login or perform accounting.

There are various implementations of RADIUS. For information about setting up RADIUS servers themselves and specifying vendor-specific attributes (VSAs), see the documentation for your product.

Note: RADIUS authentication servers can also be used to authenticate host iSCSI access to the group. See Using External RADIUS Servers for Initiator Authentication.

Setting Up External RADIUS Authentication Servers

Setting up an external RADIUS authentication server and configuring a group to use it involves a series of steps that alternate between those that you perform on the group, and those that you perform on the RADIUS server.

Note: Pool administrator accounts defined on a RADIUS server will be allowed full administrator access to PS Series groups running firmware versions 3.0.x and 3.1.x unless you configure the RADIUS server to restrict access, based on the IP address, to only groups running 3.2 or greater. It is recommended that you restrict access based on the client source IP address.

To configure a group to use an external RADIUS authentication server:

1. On the group, click:

   Group Configuration > Administration tab

   The Group Administration window appears (Figure 4: Group Administration ).
2. Select the checkbox next to Enable RADIUS Authentication for login.

   By default, the Require vendor-specific RADIUS attribute option is selected. This means that the EQL-Admin attribute must be configured as part of an account on the RADIUS server, and the RADIUS server must return it to the group in the Access-Accept message. For security reasons, it is strongly recommended that you require the EQL-Admin attribute.

   Optionally, select Enable RADIUS accounting for authenticated users if you want to track account activity. You will set up the RADIUS accounting server in a later step.
3. On the RADIUS server, you must specify one of the following RADIUS attributes:
• Service-Type = Administrative (for read-write access)
• Service-Type = NAS-Prompt (for read-only access)

If the Service-Type is not set to either value, the administrator login will fail. See your RADIUS documentation for information on how to set attributes.

4. If you selected the Require vendor-specific RADIUS attribute option in Step 2, you must configure the vendor-specific attributes (VSAs) for each account, using the information in Table 1: Vendor-Specific Attributes. If present on the RADIUS server, these attributes will be displayed (except for EQL-Admin-Poll-Interval) in the Contact Information fields in the Group Manager GUI.

Table 1: Vendor-Specific Attributes

Attribute	Field	Required Value
EQL-Admin Defines the type of login account. Required if the Require vendor-specific RADIUS attribute option is selected in the GUI.	VSA Vendor ID	12740
	VSA Type	6
	VSA Length	6 (1 byte type + 1 byte length + 4 bytes value)
	VSA Syntax	integer (4 bytes)
	VSA Value	1 (group administrator) 2 (pool administrator)
EQL-Pool-Access (Required only if the value of the EQL-Admin attribute is 2, for pool administrator accounts. If so, use the VSA Syntax field to list the pools to which the pool administrator has access.	VSA Vendor ID	12740
	VSA Type	7
	VSA Length	3 - 255
	VSA Syntax	string (comma-separated list of pools)
EQL-Admin-Full-Name (Optional). The name of the administrator who will use the account.	VSA Vendor ID	12740
	VSA Type	1
	VSA Length	3-253
	VSA Syntax	string
EQL-Admin-Email (Optional). The email address of the administrator.	VSA Vendor ID	12740
	VSA Type	2
	VSA Length	3-253
	VSA Syntax	string
EQL-Admin-Phone (Optional). The phone number for the administrator.	VSA Vendor ID	12740
	VSA Type	3
	VSA Length	3 - 253
	VSA Syntax	string
EQL-Admin-Mobile (Optional). The mobile phone number for the administrator.	VSA Vendor ID	12740
	VSA Type	4
	VSA Length	3 - 253
	VSA Syntax	string
EQL-Admin-Poll-Interval (Optional). Specifies how often, in seconds, the group configuration data must be re-polled by the GUI. Default is 30.	VSA Vendor ID	12740
	VSA Type	5
	VSA Length	6
	VSA Syntax	integer

5. On the group, specify the IP address for the RADIUS authentication server, as described in Configuring RADIUS Authentication Servers .
6. Optionally, specify the IP address for a RADIUS accounting server if you want to use accounting on the accounts, as described in Configuring RADIUS Accounting Servers .


Configuring RADIUS Authentication Servers

Before configuring RADIUS authentication servers in the Group Manager GUI, you must set up the RADIUS servers as described in Setting Up External RADIUS Authentication Servers.

To configure a RADIUS authentication server in the group, click RADIUS settings. The RADIUS Settings dialog box appears (Figure 9: RADIUS Settings ).

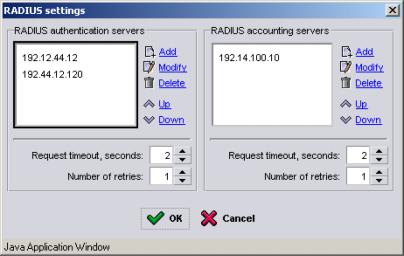

Figure 9: RADIUS Settings

Under RADIUS authentication servers, click Add. The Add RADIUS Authentication Server dialog box appears (Figure 10: Add RADIUS Authentication Server ).

Figure 10: Add RADIUS Authentication Server

Specify the IP address for the server. Use the format ip_address:port if the port is different from 1812.

Optionally, enter the secret (password) for the RAIDUS authentication server. The secret can contain up to 63 characters. It is recommended that you use secrets for security reasons.

Click OK when you are finished.

You can specify up to three IP addresses. Only one server is used at one time. The first server specified is the default server. The other servers are used, in the order specified, if the default server is not available. Use the up and down arrows in the RADIUS Settings dialog box to rearrange the addresses.

To modify or delete an IP address, in the RADIUS Settings dialog box, select the IP address and click Modify or Delete.

In addition, for all the RADIUS authentication servers specified in the RADIUS Settings dialog box (Figure 9: RADIUS Settings ), specify information in the following fields:

• Request timeout — Number of seconds the group will wait for an authentication server to respond before timing out. The default is 2 seconds.

  For example, when a user attempts to log into an administration account, the group will try to contact an authentication server. If the server does not respond within the request timeout period, the attempt at contact will fail. Depending on the retry setting, the group may again try to contact the server.
• Number of retries — Number of times the group will try to contact an authentication server after the first attempt fails. The default is 1 retry.

  Once the retry limit has been reached, the group will consider the server unavailable. If there is another authentication server configured, the group will then attempt to contact that server.

  For example, when a user attempts to log into an administration account, the group will try to contact an authentication server. If there is no response within the request timeout period, the group will retry contacting the server the number of times specified by the retry setting.

Configuring RADIUS Accounting Servers

To configure a RADIUS accounting server, in the RADIUS Settings dialog box (Figure 9: RADIUS Settings ), under RADIUS accounting servers, click Add. The Add RADIUS Accounting Servers dialog box (Figure 11: Add RADIUS Accounting Server ) appears.

Figure 11: Add RADIUS Accounting Server

Specify the IP address for the server. Use the format ip_address:port if the port is different from 1813.

Optionally, enter the secret (password) for the RAIDUS authentication server. The secret can contain up to 63 characters. It is recommended that you use secrets for security reasons. Click OK when you are finished.

You can specify up to three IP addresses. Only one server is used at one time. The first server specified is the default server. The other servers are used, in the order specified, if the default server is not available. Use the up and down arrows in the RADIUS Settings dialog box to rearrange the addresses.

To modify or delete an IP address, in the RADIUS Settings dialog box, select the IP address and click Modify or Delete.

In addition, for all the RADIUS accounting servers specified in the RADIUS Settings dialog box (Figure 9: RADIUS Settings ), specify information in the following fields:

• Request timeout — Number of seconds the group will wait for an accounting server to respond before timing out. The default is 2 seconds.

  For example, when a user attempts to log into an administration account, the group will try to contact a RADIUS authentication server. Then—if the account is authenticated—the group will try to contact a RADIUS accounting server. If the accounting server does not respond within the request timeout period, the attempt at contact will fail. Depending on the retry setting, the group may again try to contact the accounting server.
• Number of retries — Number of times the group will try to contact an accounting server after the first attempt fails. The default is 1 retry.

  For example, when a user attempts to log into a group administration account, the group will try to contact a RADIUS authentication server. Then—if the account is authenticated—the group will try to contact an accounting server. If there is no response within the request timeout period, the group will retry contacting the server the number of times specified by the retry setting.
